BT40/SDC04-090

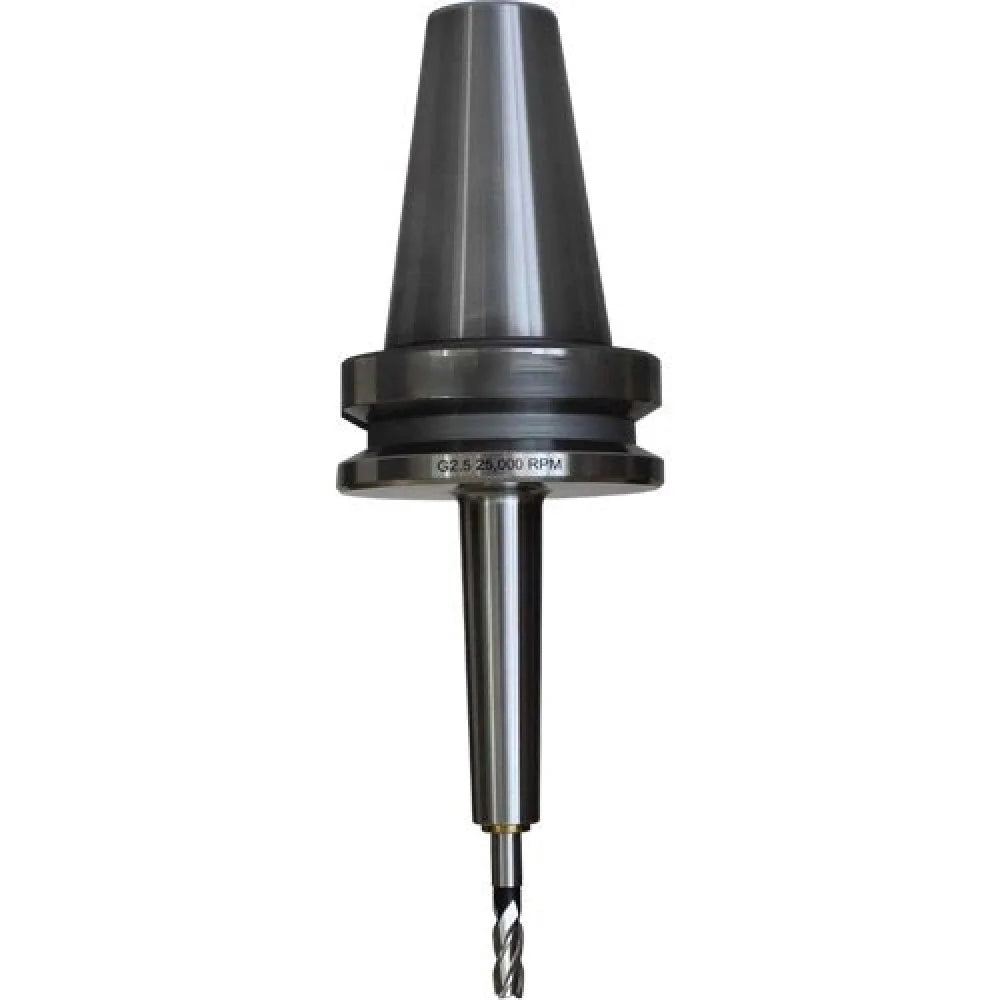

BT40/SDC04-090 tool holder is a specific type of tool holder used in CNC milling machines. The "BT40" refers to the taper shank size, indicating a 40 taper. The "SDC" likely denotes a specific type of collet chuck, and the "-04" probably indicates the collet size (e.g.,2mm,3mm,4mm5mm,6mm). The "-90" likely indicates a 90-degree angle head, meaning it's designed to hold tools at a 90-degree angle to the spindle.
Key Features and Explanation:
-
BT40 Taper:This is a standard taper size for tool shanks used in CNC milling machines, providing a secure and accurate connection between the tool holder and the spindle.
-
-
SDC Collet Chuck:This type of chuck uses collets (spring-loaded collet sleeves) to grip the cutting tool, offering high precision and flexibility for different tool shank diameters.
-
-
Angle Head (90 degrees):The 90-degree angle head allows for machining at a right angle to the main spindle axis, enabling access to features or areas that would be difficult or impossible to reach with a standard tool holder.
-
SDC collet chucks are known for their high precision and low runout (eccentricity), ensuring accurate machining and long tool life.
-
-
Applications:These tool holders are commonly used for mold making, machining automobile components, and other applications requiring high precision and complex geometries.
-
-
Benefits:They improve surface finish, reduce tool wear, and allow for machining in tight spaces, leading to increased productivity and efficiency.
-
-
-
-
| Size |
BT40/SDC04-90, BT40/SDC04-120, BT40/SDC04-150 |
|---|
