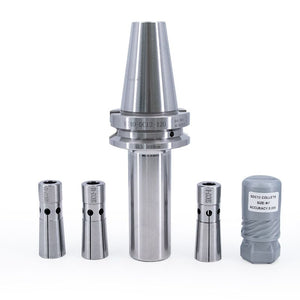

BT40/SDC12-120
The BT40/SDC12-090 specification refers to a tool holder with a BT40 taper, designed for high-speed machining. It utilizes an SDC (Slim Design Collet) chuck with a clamping range of 12mm and a length of 90mm. The "090" likely indicates the overall length of the holder. These holders are known for their precision, slim profile for deep cavity machining, and suitability for high-speed applications.
Key Features and Specifications:
- Taper: BT40 (ISO 7388-2 standard)
- Collet Type: SDC (Slim Design Collet)
- Clamping Range: 3mm to 12mm
- Length: 90mm,120mm,150mm (likely indicates the overall length)
- Dynamic Balance: Typically balanced to G2.5 at 25,000 RPM
- Material: High-quality tool steel, case hardened
- Clamping Accuracy: < 0.002mm
- Speed: ≤ 25,000 RPM
- Body Accuracy: ≤ 0.003mm
Common Applications:
- High-speed machining: The BT40/SDC12-090 is well-suited for applications requiring high rotational speeds and precision.
- Deep cavity machining: The slim design of the SDC chuck allows for access to tight spaces.
- General CNC machining: The holder is versatile and can be used in various CNC machining applications.
Important Considerations:
-
Runout:The holder is designed for minimal runout, ensuring accuracy and surface finish.
-
Vibration:The dynamic balancing helps minimize vibration at high speeds, improving machining quality.
-
Material Compatibility:Ensure the collet and tool shank materials are compatible for optimal performance and longevity.
-
| Size |
BT40/SDC12-090, BT40/SDC12-120, BT40/SDC12-150 |
|---|
