Carbide Insert TNMA1604 (pack of 10 1box)
Ask a question
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout

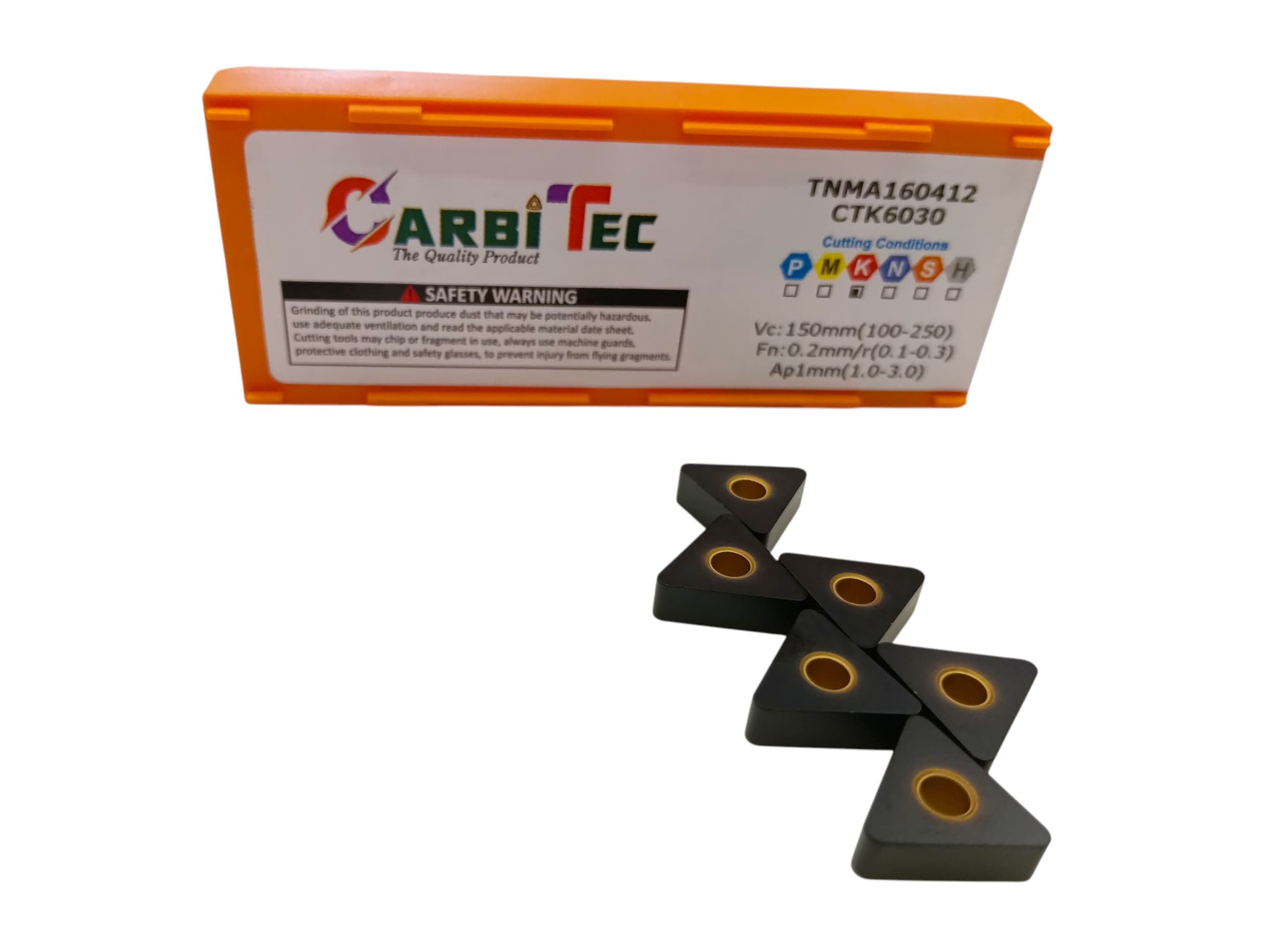

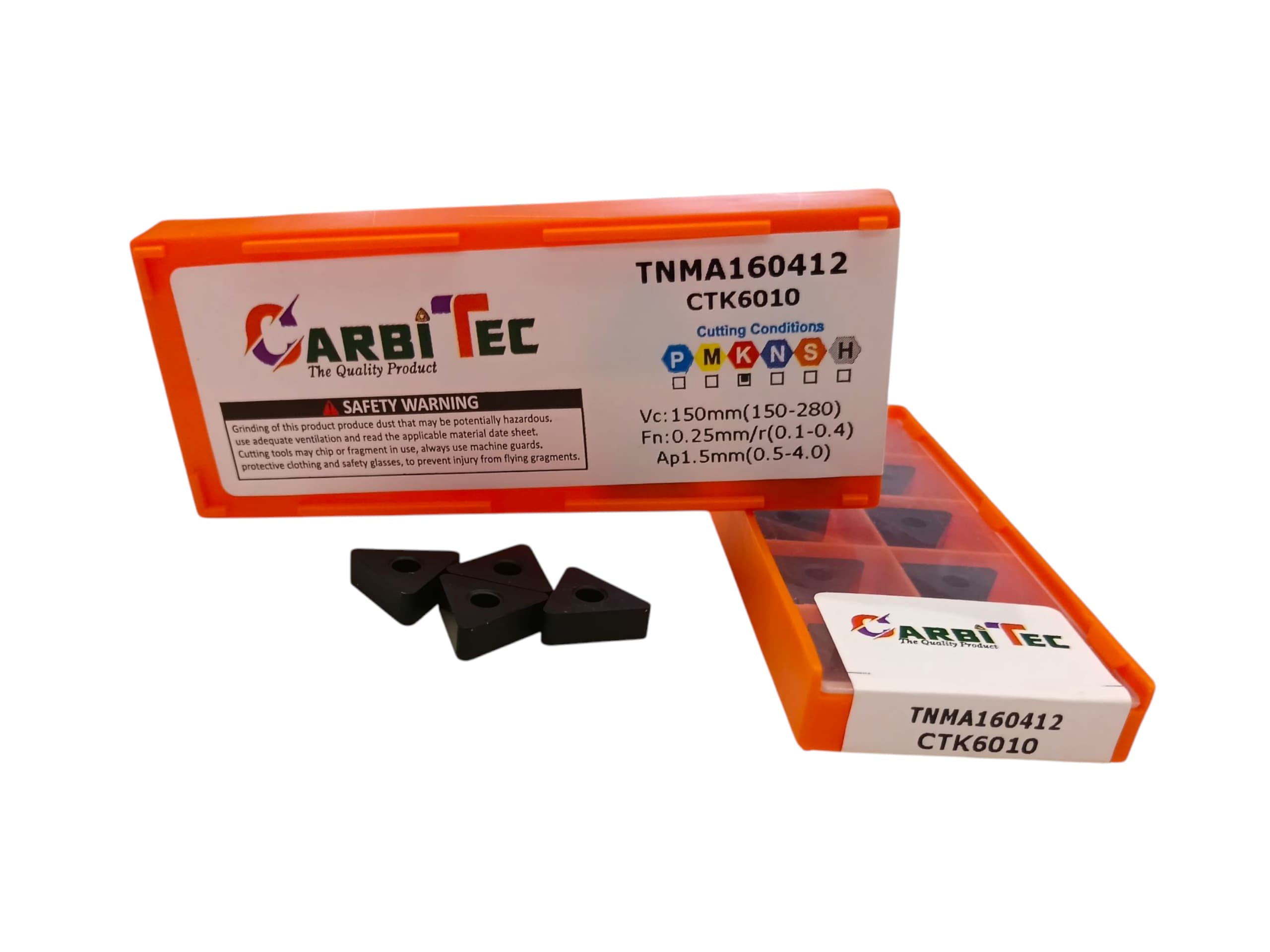

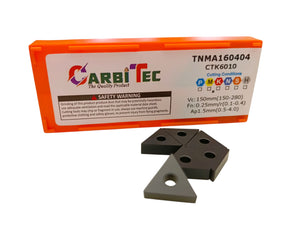

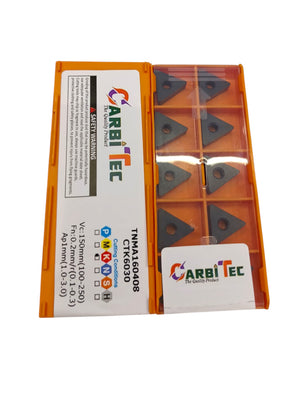

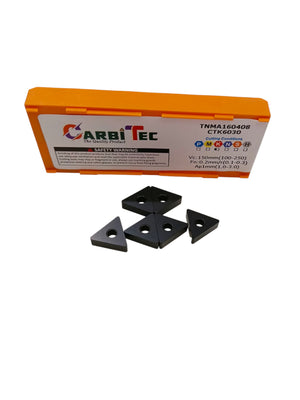

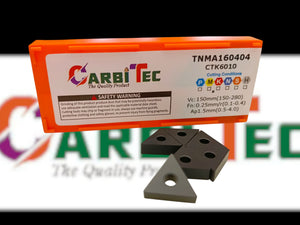

Carbide Insert TNMA1604 (pack of 10 1box)
TNMA carbide inserts are triangular-shaped inserts with a 60-degree included angle. They are commonly used for turning operations and are known for their versatility and strong cutting edge. The standard dimensions for TNMA inserts are: 16.5mm cutting edge length, 4.76mm thickness, and a 9.52mm inscribed circle diameter.
Here's a more detailed breakdown:
- Inscribed Circle (IC): 9.52mm (3/8 inch).
- Thickness (S): 4.76mm (3/16 inch).
- Cutting Edge Length (L): 16.5mm.
- Nose Radius: Can vary, but often 0.8mm (0.031 inch).
- Hole Size: 3.81mm.
- Material: Typically made of carbide, which allows for high-speed machining and good finishes.
- Common Applications: Used for turning operations, particularly in steel, cast iron, and other materials.
| Size |
TNMA160404 CTK6010, TNMA160408 CTK6010, TNMA160412 CTK6010, TNMA160404 CTK6020, TNMA160408 CTK6020, TNMA160412 CTK6020, TNMA160404 CTK6030, TNMA160408 CTK6030, TNMA160412 CTK6030 |
|---|
