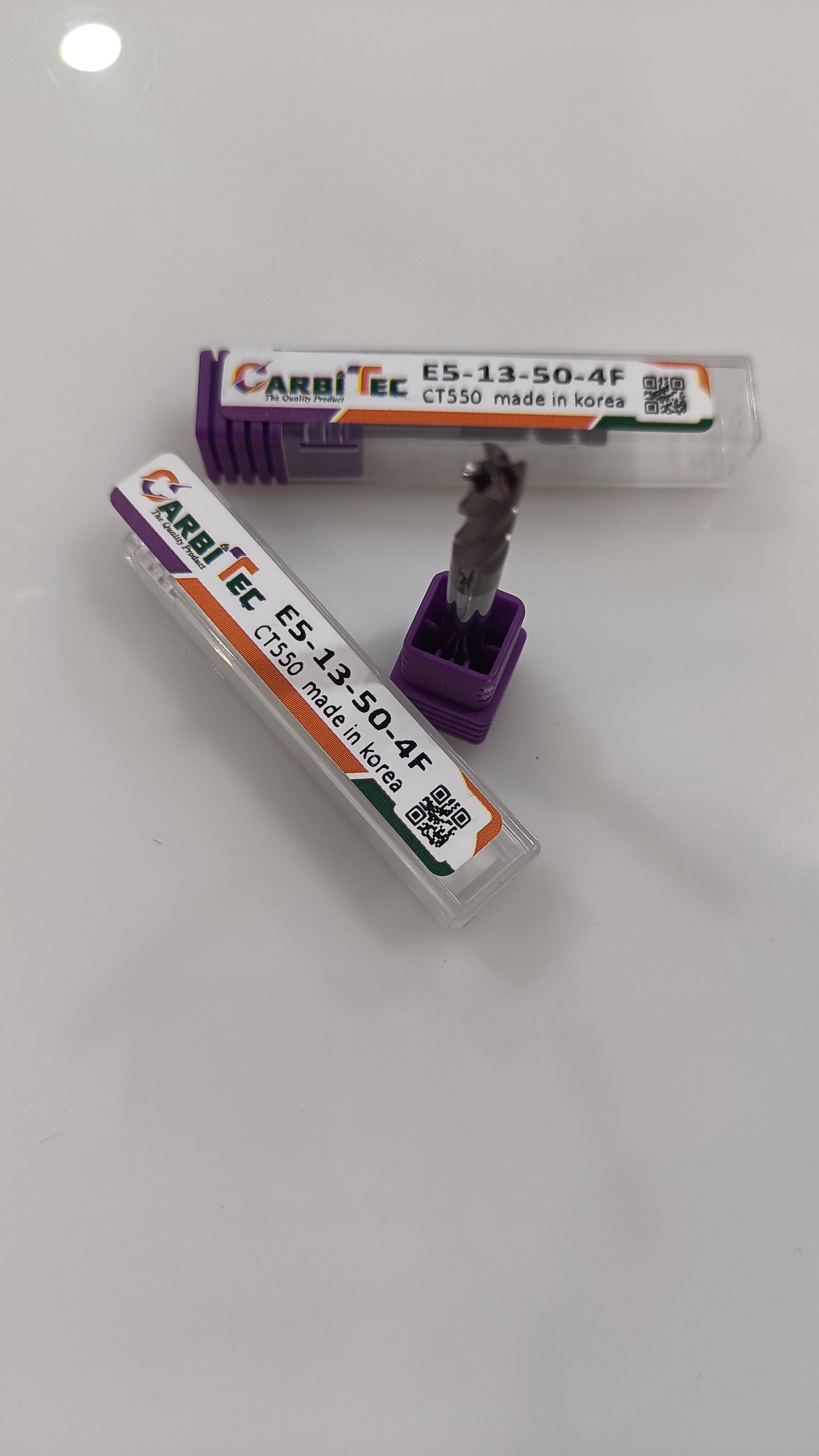

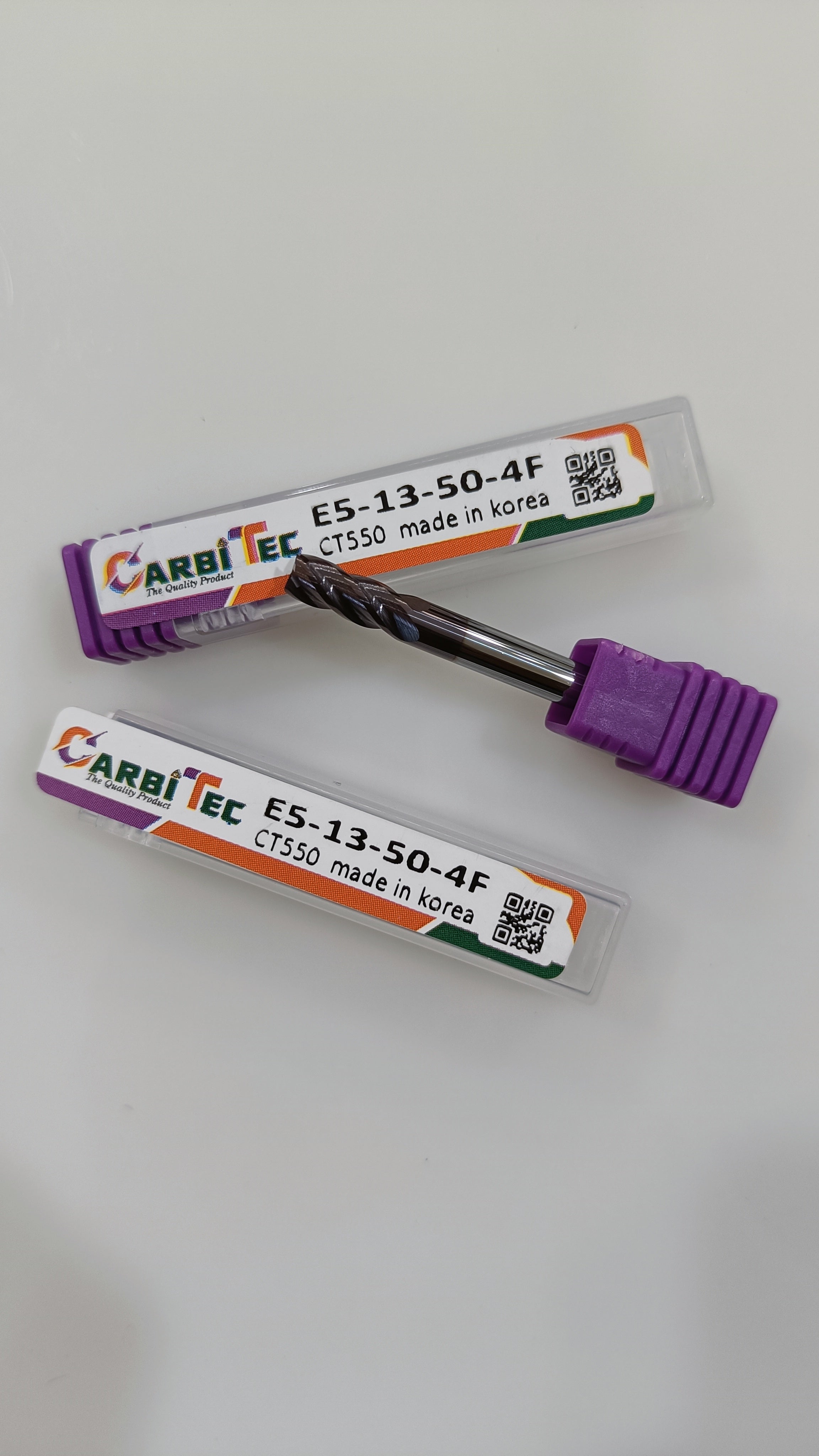

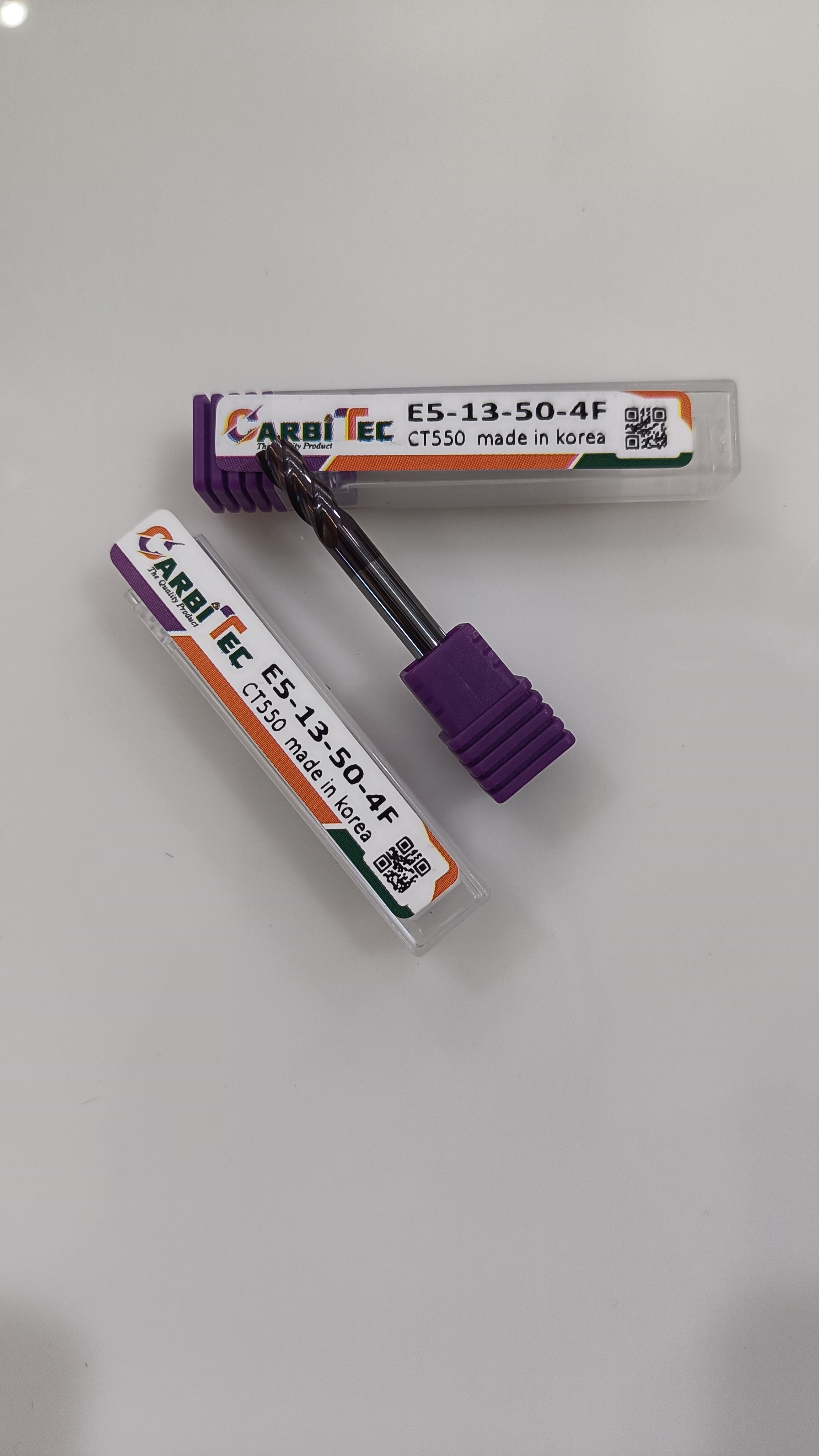

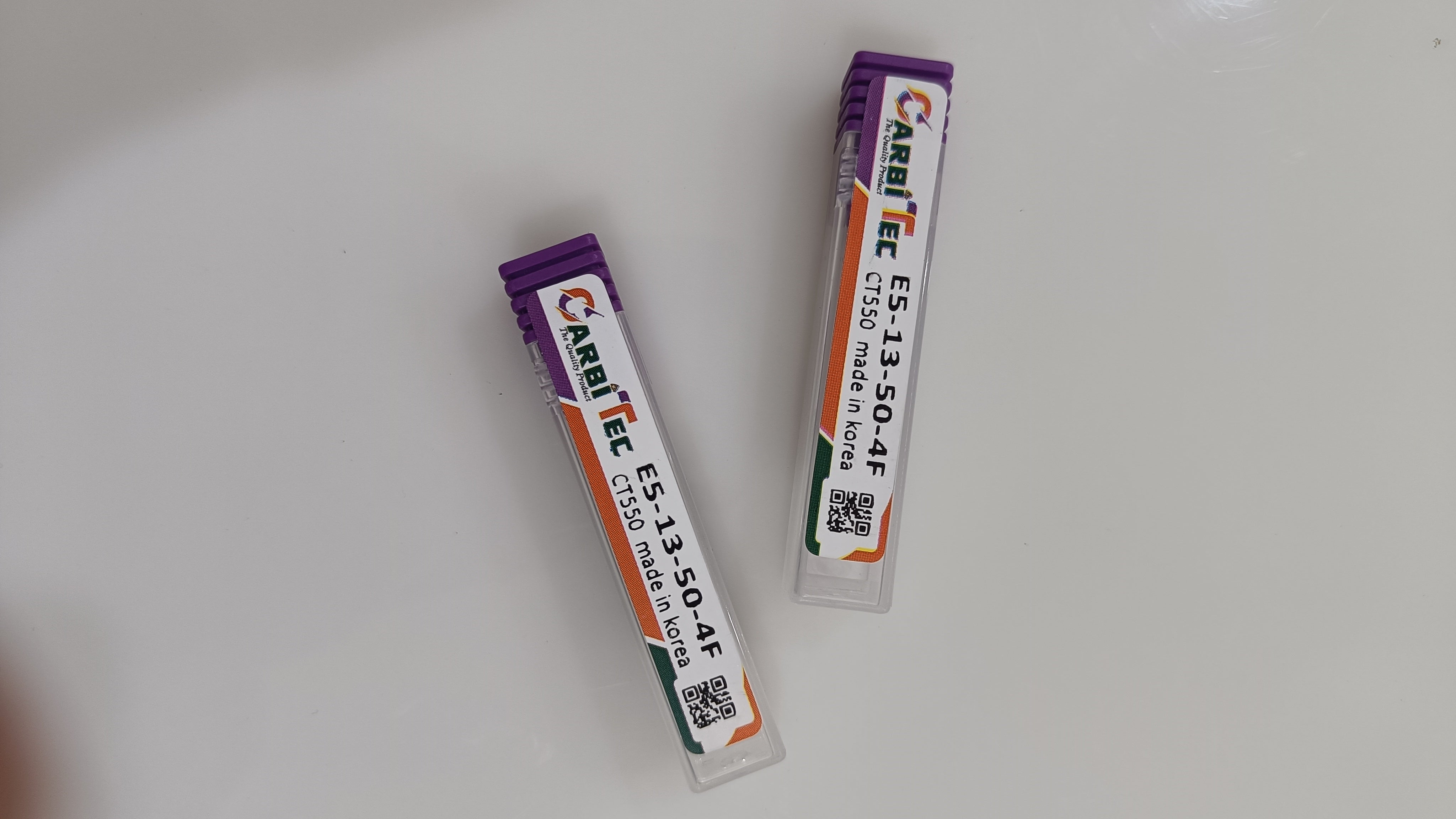

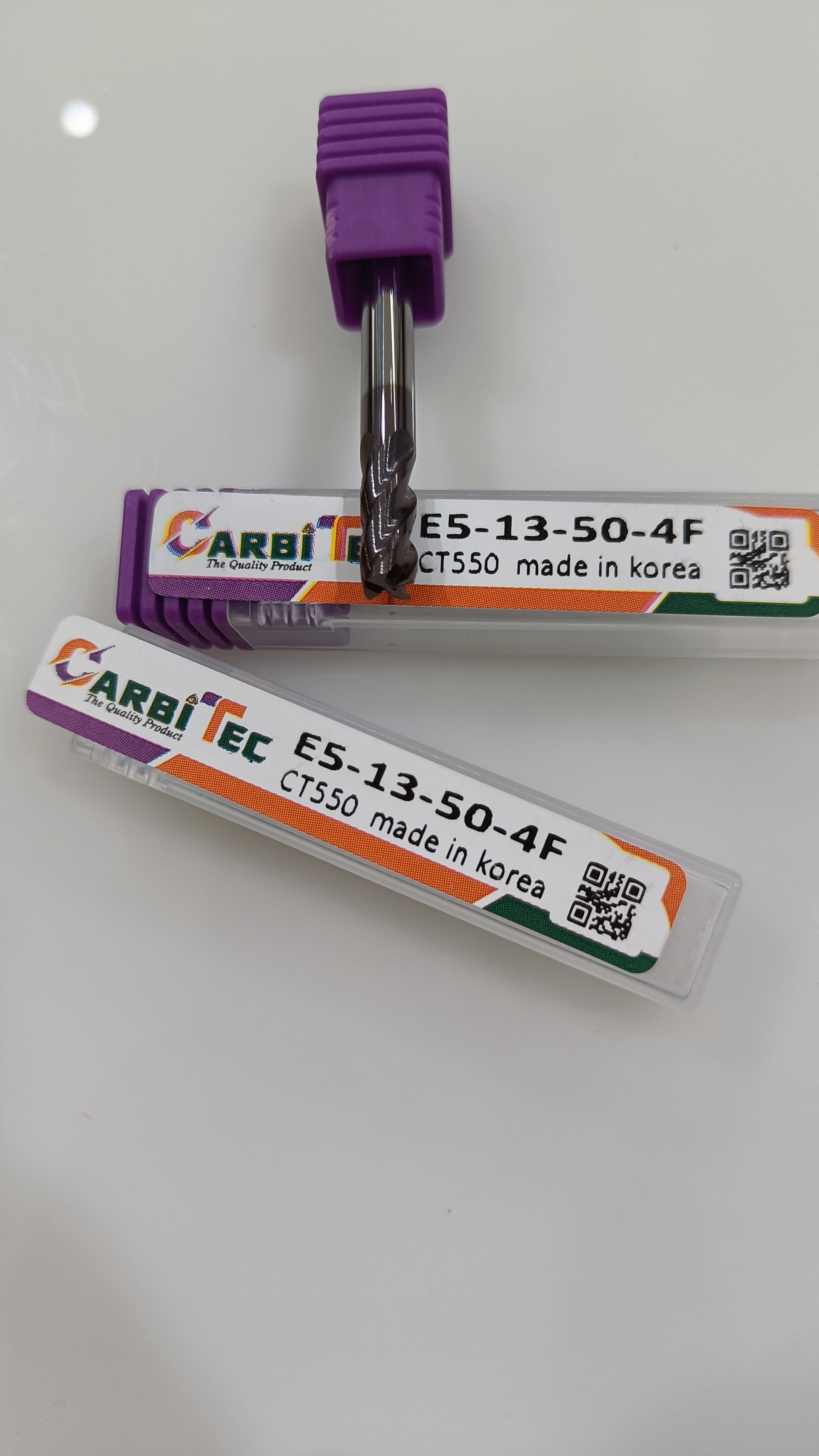

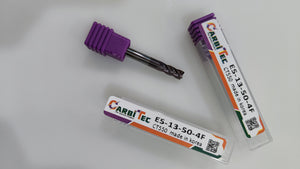

End Mill 5mm
5 mm Solid Carbide End Mill – Technical Specifications
| Feature | Description |
|---|---|
| Cutting Diameter | 5.00 mm |
| Shank Diameter | 5.00 mm (standard) |
| Flutes | 4, (based on application) |
| Length of Cut | ~12–15 mm |
| Overall Length | ~50 mm |
| Helix Angle | 30°–45° |
| Material | Micrograin solid carbide |
| Coating Options | TiAlN |
4 Specific 5 mm Solid Carbide End Mills 1. Helical Solutions – 5 mm 4-Flute Variable Helix End Mill
-
Flutes: 4
-
Helix Angle: Variable (38°–42°)
-
Cut Length: 15 mm
-
Overall Length: 50 mm
-
Coating: Aplus (TiAlN)
-
Material Use: Stainless steel, titanium, high-temp alloys
High-performance general-purpose tool with excellent chip control and finish.
4. Alu-Power TiAlN Coated End Mill
-
Flutes: 5
-
Helix: 45°
-
Shank: 5 mm
-
Coating: TiAlN
-
Material: Aluminum, copper, graphite
High-speed aluminum machining with zero built-up edge and superior finish.
Typical Machining Parameters (AlTiN-Coated, 5 mm Tool)
| Material | RPM | Feed per Tooth | Feed Rate | DOC (Axial) |
|---|---|---|---|---|
| Steel (45 HRC) | 10,000–12,000 | 0.015–0.025 mm | 600–1,200 mm/min | 1–2 mm |
| Stainless Steel | 8,000–10,000 | 0.010–0.020 mm | 400–800 mm/min | 0.8–1.5 mm |
| Aluminum | 14,000–18,000 | 0.025–0.045 mm | 1,000–2,000 mm/min | 2–4 mm |
Tip: For steel or stainless, opt for 4-flute or higher. For aluminum, use 2 or 3 flutes with high helix and DLC coating.
Want More?
Would you like:
-
PDF datasheets or CAD models?
-
Custom feed/speed for your machine, CAM system, or workpiece?
Just let me know — I’ll customize the recommendation to your application.
| Size |
5*50, 5*75, 5*100 |
|---|
