SD06-COLLET

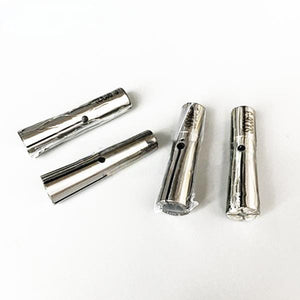

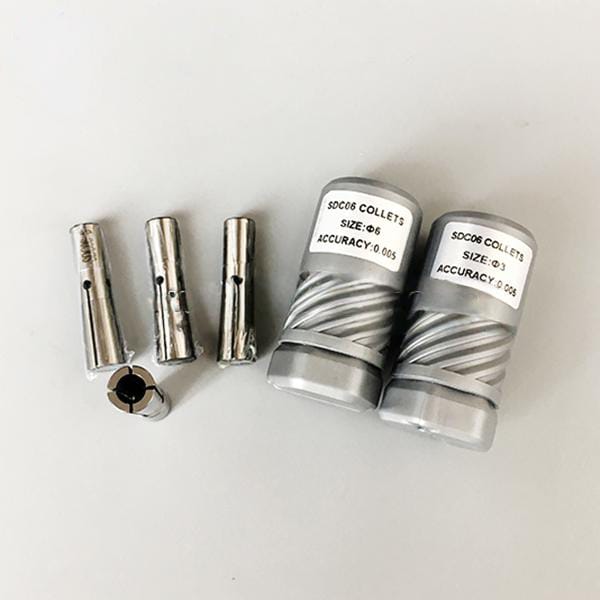

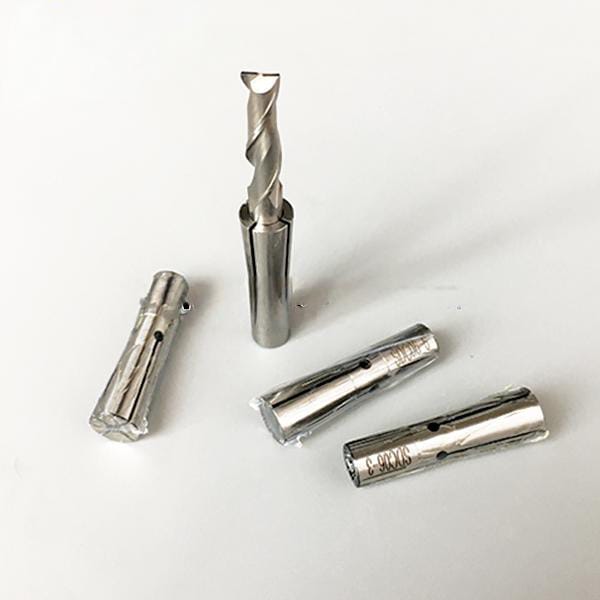

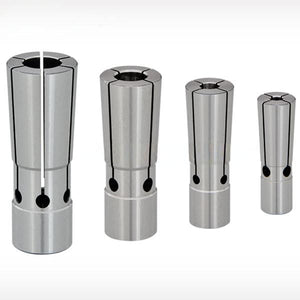

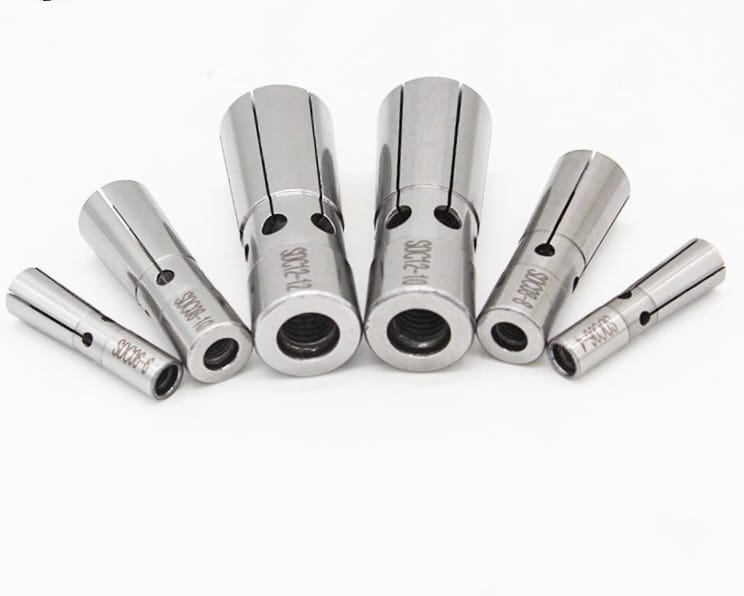

An SDC06 collet, often used in milling machines and CNC applications, typically has a clamping range of 2mm to 6mm and a length (L1) of 14mm or 16mm depending on the specific model, Some variations, like the SDC06-1/4, are designed for 1/4 inch (6.35mm) shanks. These collets are known for their high precision, with runout tolerances often specified as 0.003mm or 0.005mm. They are commonly made from 65Mn steel and hardened to HRC 44-48 for durability.
Key Dimensions and Characteristics:
- Clamping Range: 2mm to 6mm, with some variations like the SDC06-1/4 for 6.35mm (1/4 inch) shanks.
- Length (L1): Typically 14mm or 16mm, depending on the specific collet.
- Material: 65Mn steel.
- Hardness: HRC＞44-48°.
- Accuracy: Runout tolerance of 0.003mm or 0.005mm.
- Type: Often used in pull-back collet chucks for milling, drilling, and engraving.
-
Applications: Suitable for various machining applications, including endmills, cutters, routers, and drills.
Additional Notes:
-
DIN6499b standard:Some SDC06 collets adhere to the DIN6499b standard, which is a German standard for collets.
-
Pull-back design:Many SDC06 collets are designed with a pull-back feature, meaning they are pulled back into the collet chuck during clamping.
-
High precision:The high accuracy and minimal runout of SDC06 collets make them suitable for applications requiring precision and a good surface finish.
-
-
-
| Size |
2mm, 3mm, 4mm, 5mm, 6mm |
|---|
