SDC12-COLLET

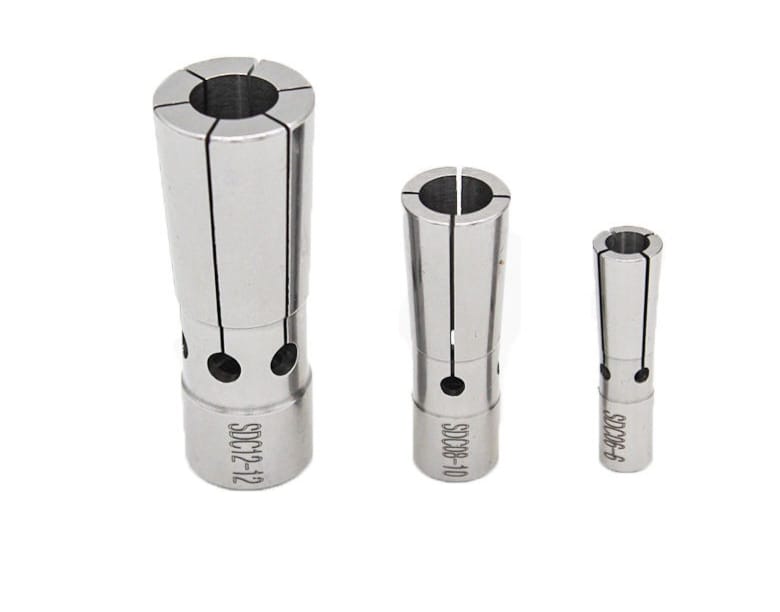

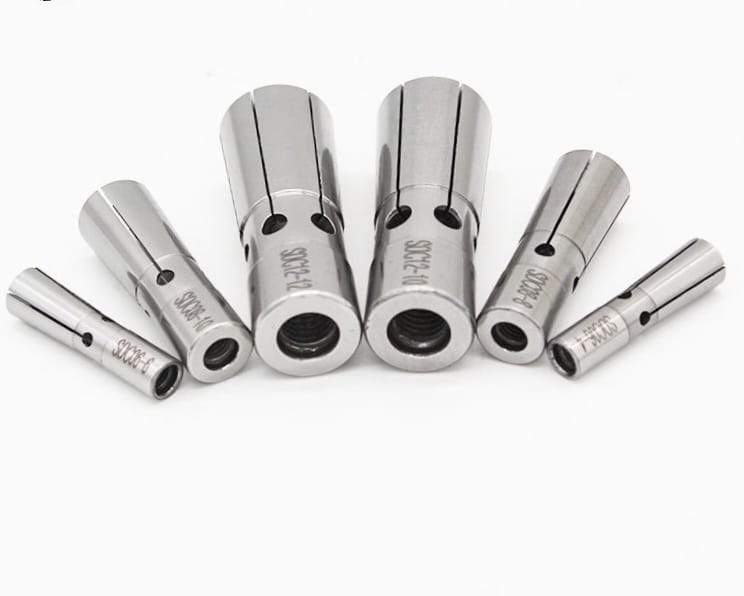

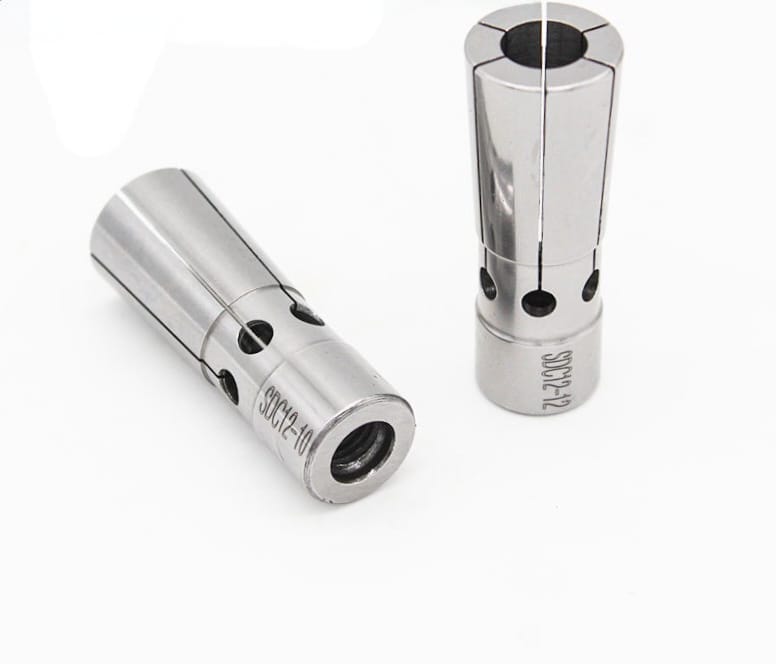

SDC12 collets have a shank diameter of 12mm and are available in various inside diameters, typically ranging from 4mm to 12mm, with specific sizes like 4mm, 6mm, 8mm, 10mm, and 12mm. They are used for clamping tools like end mills, drills, reamers, and taps in CNC machines and other machinery.
Here's a more detailed breakdown:
- Shank Diameter: All SDC12 collets share a 12mm shank diameter.
- Inside Diameter: The internal diameter of the collet varies depending on the specific model. Common sizes include:

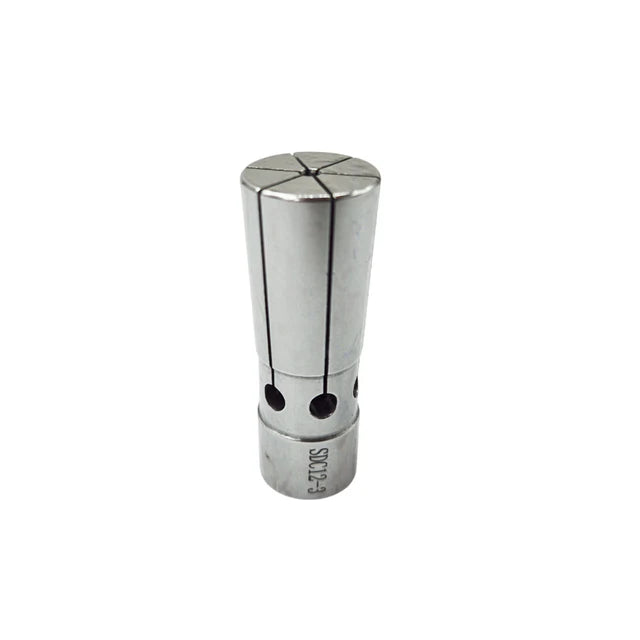

- SDC12-3.0MM: 3mm
- SDC12-4.0MM: 4mm
- SDC12-5.0MM: 5mm
- SDC12-6.0MM: 6mm
- SDC12-7.0MM: 7mm
- SDC12-8.0MM: 8mm
- SDC12-9.0MM: 9mm
- SDC12-10.0MM: 10mm
- SDC12-12.0MM: 12mm
- Applications: SDC12 collets are used in turning, milling, reaming, and drilling operations,
- Material: These collets are typically made of 65Mn steel and hardened to HRC 44-48.
- Accuracy: SDC12 collets are designed for precision with a reported accuracy of 0.008mm.
- Series: SDC12 is a specific series of collets, also known as DC collets. They are a type of slim collet chuck.
| Size |
3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 12mm |
|---|
